Dollhouse Electric LIGHT BULBS Page 2
from FINGERTIP FANTASIES Dollhouse Miniatures


	MICRO-FLAME BULBS
	12V Micro-Flame Bulb with 12" white wires (CK1010-11) 12V Micro-Flame Bulb with 12" varnished wires (CK1010-11A) 12V Micro-Flame Bulb with wire terminals (CK1010-12)	$1.59 $1.59 $1.30
	These are the smallest flame-tip bulbs to be found anywhere, measuring a mere .079" (2.0 mm) in diameter. Use wherever a "to scale" flame look is desired. Excellent for chandeliers, sconces, and coach lamps requiring extremely small bulbs. Available with either 12" insulated wires or solid 1" wire terminals. Current drain: 40 ma. The CK1010-12 bulbs should be used in conjunction with the CK1010-16 and -17 candle bodies to create fixtures with easily replaceable bulbs. 2,500 hour bulb life.

	MICRO BULBS
	1.5V Micro Bulb with 8" black wires (CK1010-13) 1.5V Micro Bulb with 8" white wires (CK1010-14) 1.5V Micro Bulb with wire terminals (CK1010-15)	$1.59 $1.59 $1.59
	Measuring less then 1.3 mm (.055") in diameter these bulbs are truly a tribute to the bulb maker's art. Perfect for small scale applications where a flashlight battery or 1.5V power source such as the CK1009G transformer is available. They may also be used individually with a 12-volt transformer if connected in series through a CK1100 1,000 ohm dropping resistor. Draws less than 15 ma at 1.5 volts. 1,000 hour bulb life.

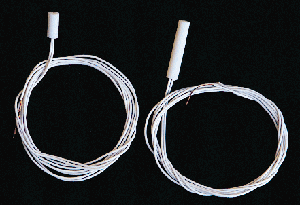

	CANDLEBODY SOCKETS
3/16" Candlebody Socket with 12" white wires (CK1010-16) 3/16" Candlebody Socket with 12" brown wires (CK1010-16A) 3/16" Candlebody Socket with 12" varnished wires (CK1010-16B) 7/16" Candlebody Socket with 12" white wires (CK1010-17) 7/16" Candlebody Socket with 12" brown wires (CK1010-17A) 7/16" Candlebody Socket with 12" varnished wires (CK1010-17B)		$1.70 $1.70 $1.70 $1.70 $1.70 $1.70
	These sockets have been developed especially for use with the CK1010-5 and CK1010-12 series of wire terminal bulbs. When used with a CK1010-12 bulb they provide a "true-to-scale" candle look for miniature candlesticks, chandeliers and sconces. Since the bulbs are merely plugged in, replacement in the event of failure is greatly simplified. The sockets are .089" in diameter and measure either 3/16" or 7/16" in length.
SCREW-BASE BULBS & SOCKETS
	12V Screw-Base Bulb (CK1010-7) 16V Screw-Base Bulb (CK1010-7A) 12V Screw-Base Bulb with Orange Glass (CK1010-7B) 8V Screw-Base Bulb (CK1010-7C) 12V Round Screw-Base Bulbs (4 pack) (CK1010-7D Screw-Base Bulb Socket with 8" black wires (CK1010-8) Screw-Base Bulb Socket with 8" white wires (CK1010-8A)	$1.09 $1.09 $1.09 $1.09 $2.95 $1.09 $1.09
	The CK1010-7 series is a widely used screw-in type bulb. In conjunction with a CK1010-8 socket they may be used in table lamps or in areas where easy bulb replacement is desirable. The small gauge wires from the CK1010-8 socket may be connected either to a CK1004 plug or brass bradded directly into a conductive tape run. Diameter of the glass envelope is approximately 1/4" with an overall bulb length of approximately 9/16". The CK1010-7C bulb may be used either with a 9-volt battery or as an extra-bright light source for 12-volt electrical fixtures. The CK1010-7B bulb is a replacement bulb for the CK865 Glowing Embers. 2,500 hour bulb life.
